Furetsu
![](https://freight.cargo.site/t/original/i/66b790a7dba8d0d158bd8e134258177ab4fa160e995882ab1c4c683e33cdd2bf/2.png)
![](https://freight.cargo.site/t/original/i/00cee04c5fad8b952f96af08be5cdcb1848435946f3ebdda25f6844c376bb41b/10.jpg)
![](https://freight.cargo.site/t/original/i/6525ad400d77103b92ee8c0929c55b3f65cef40344c5a0d11e8e1076001ce04b/1.png)
TEDx RioDeLaPlata 2017 Itinerant Pavillion

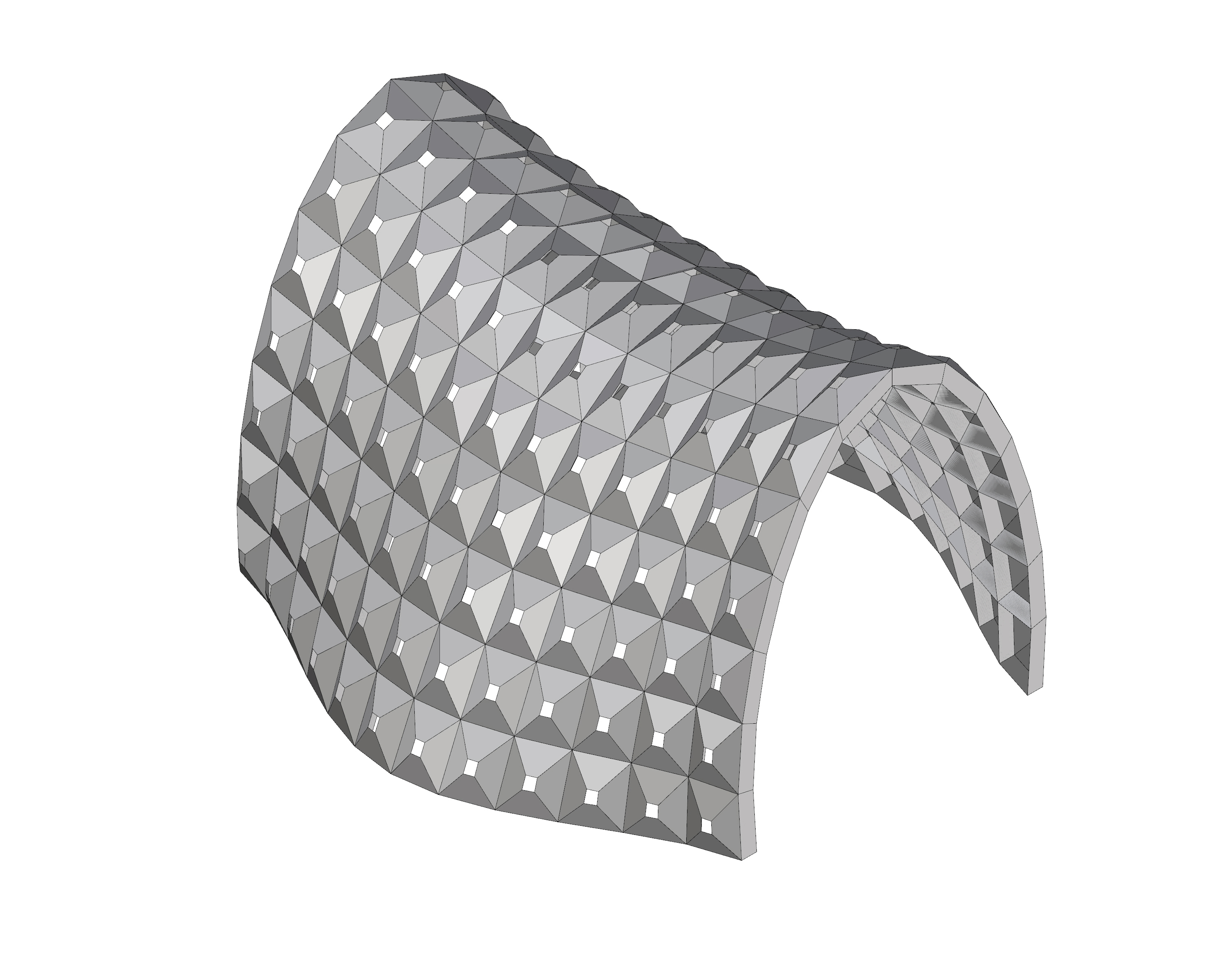

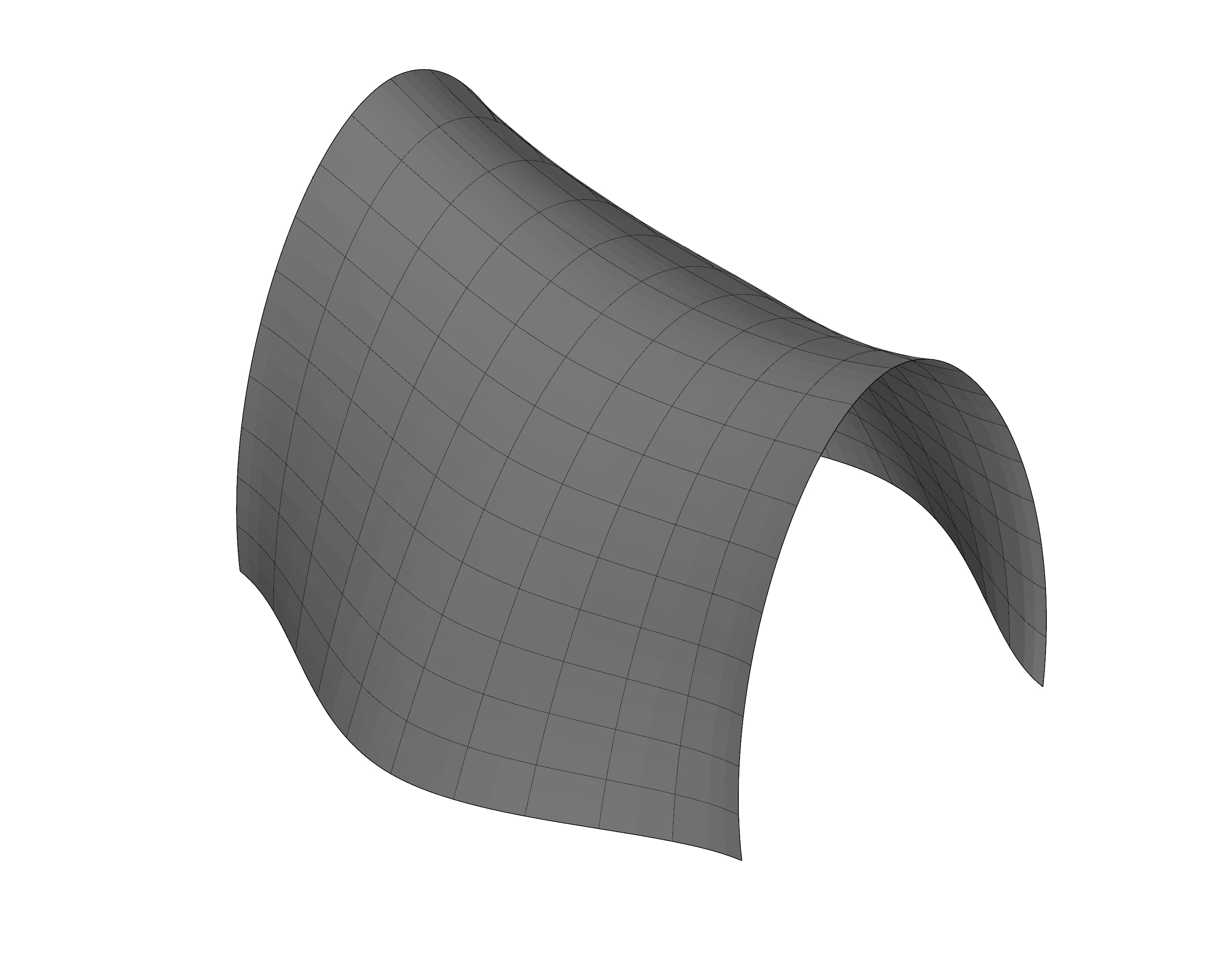

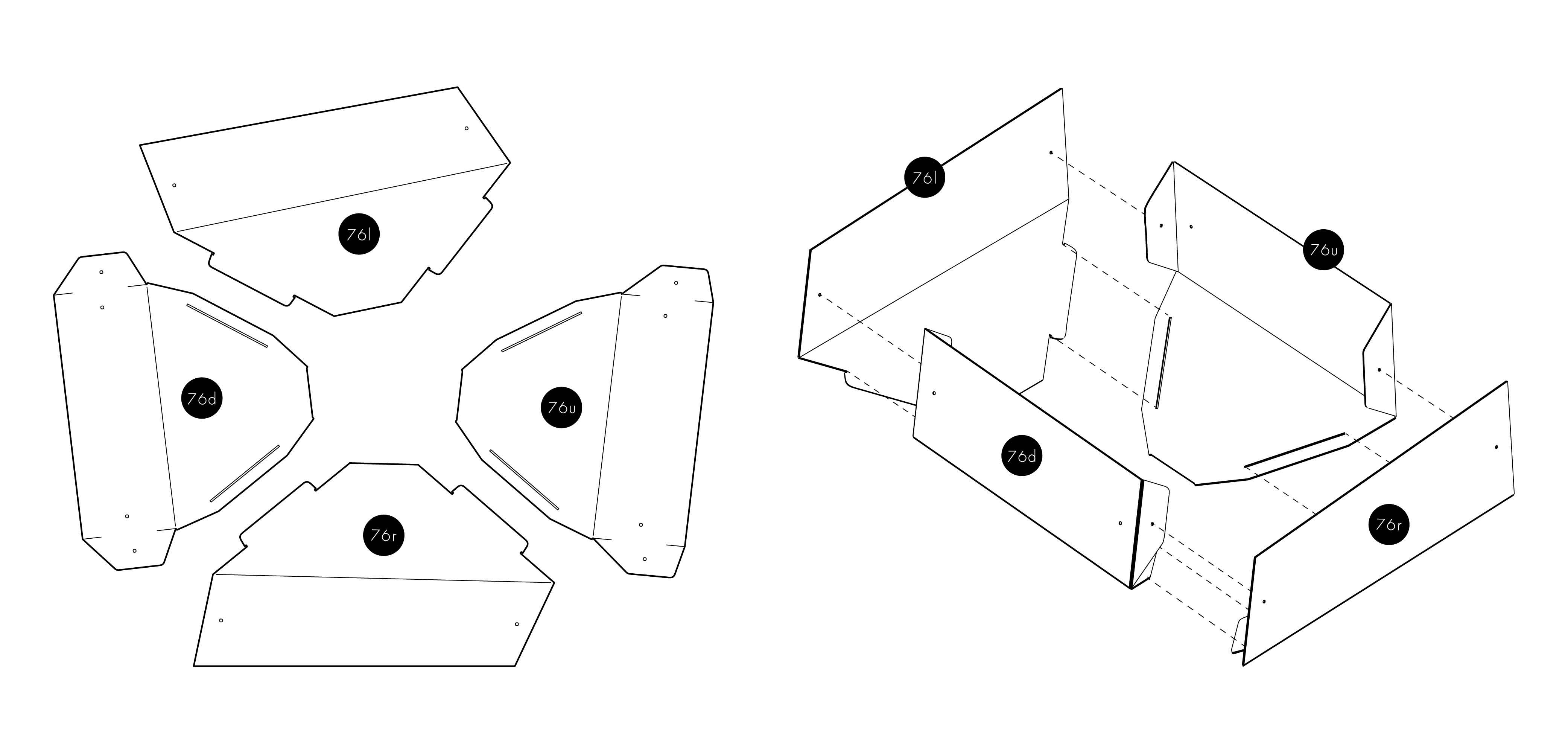

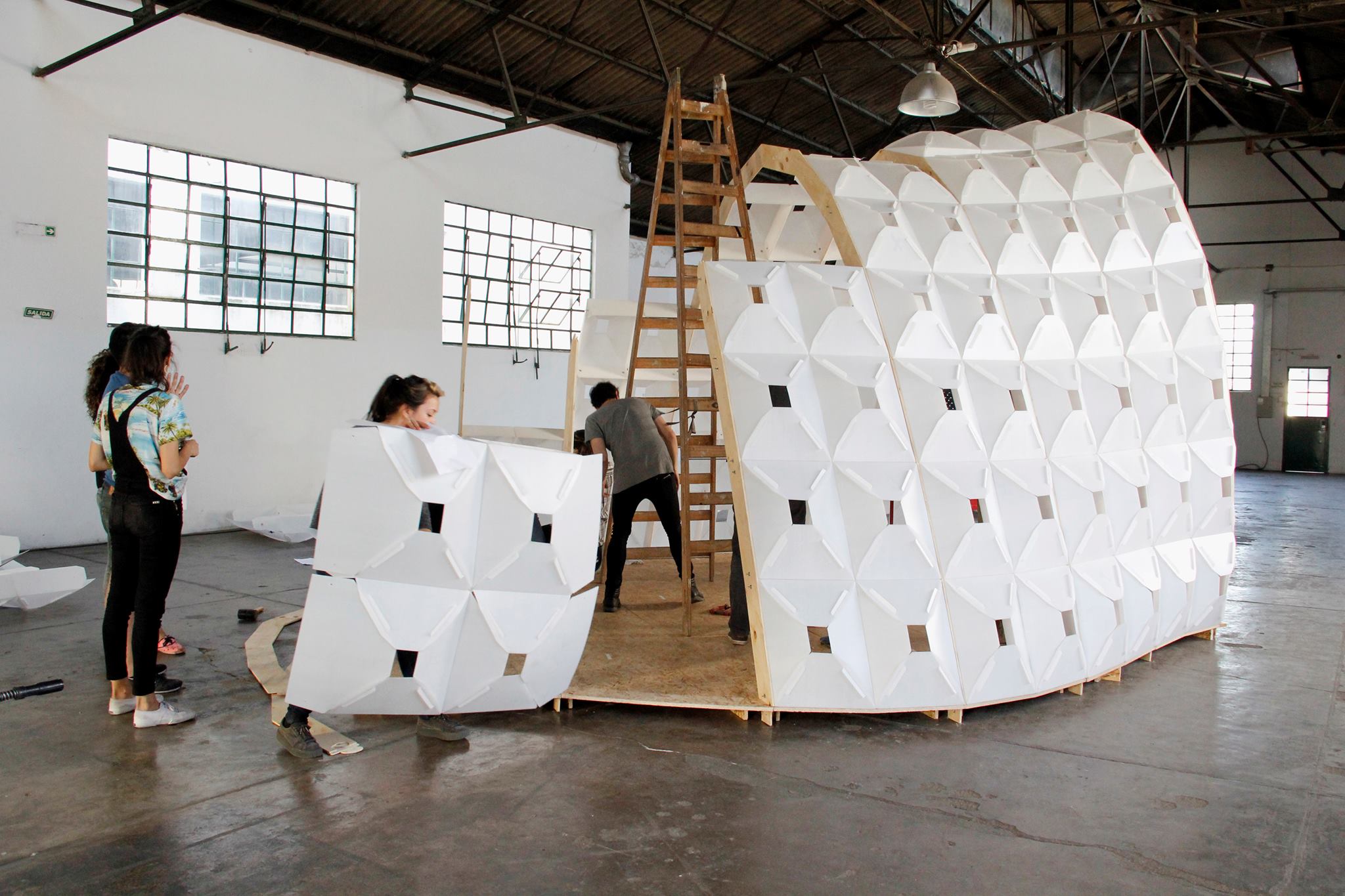

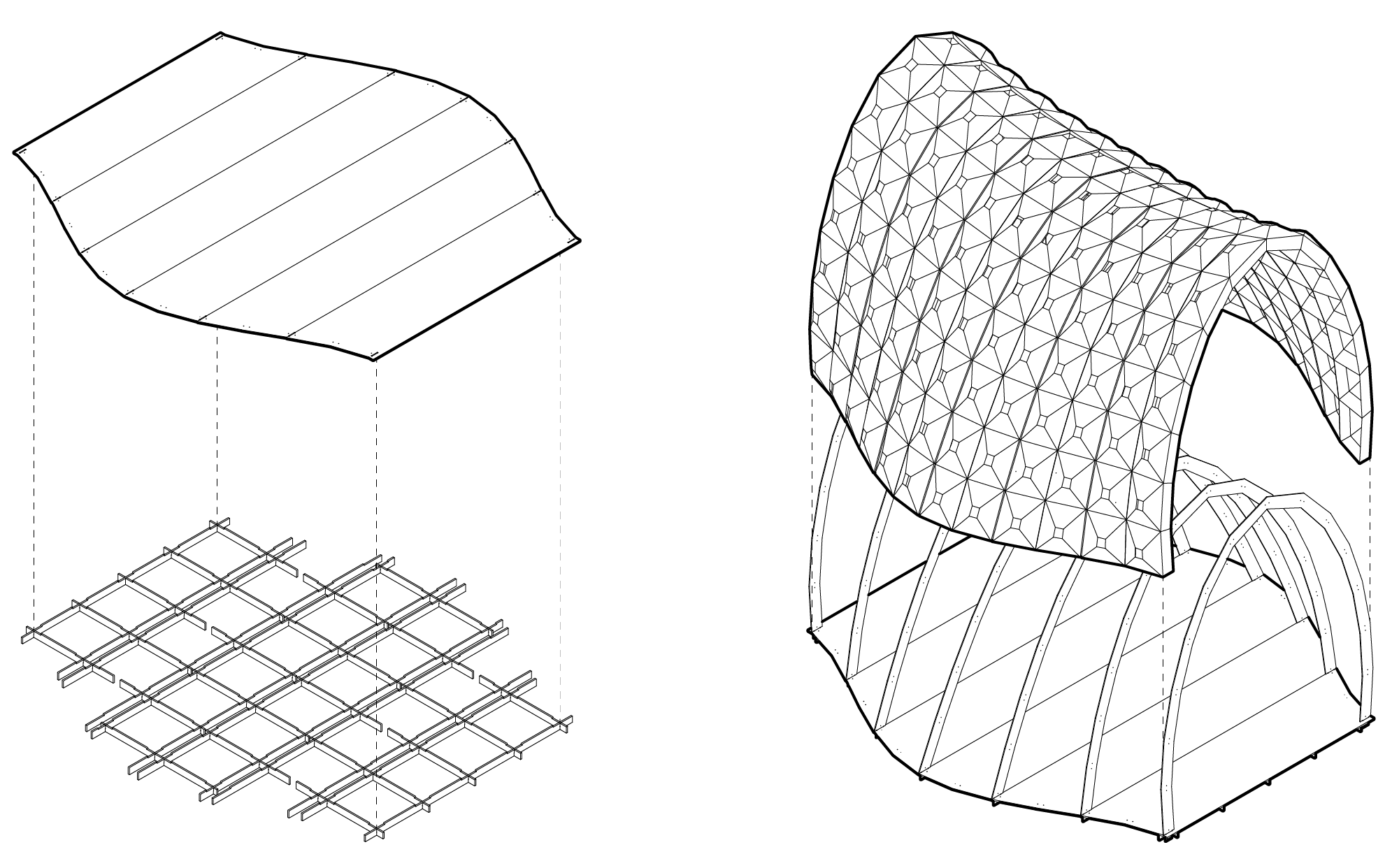

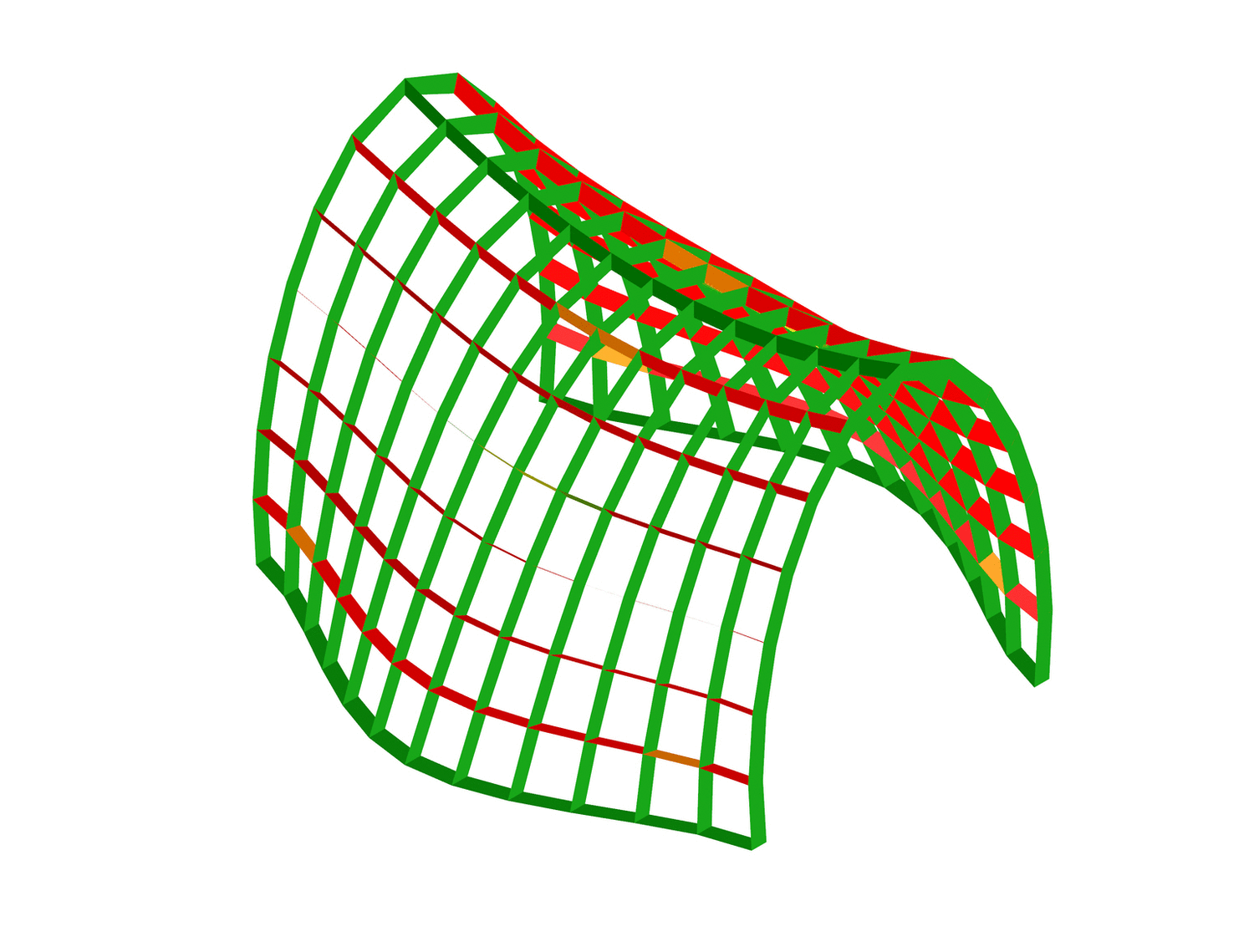

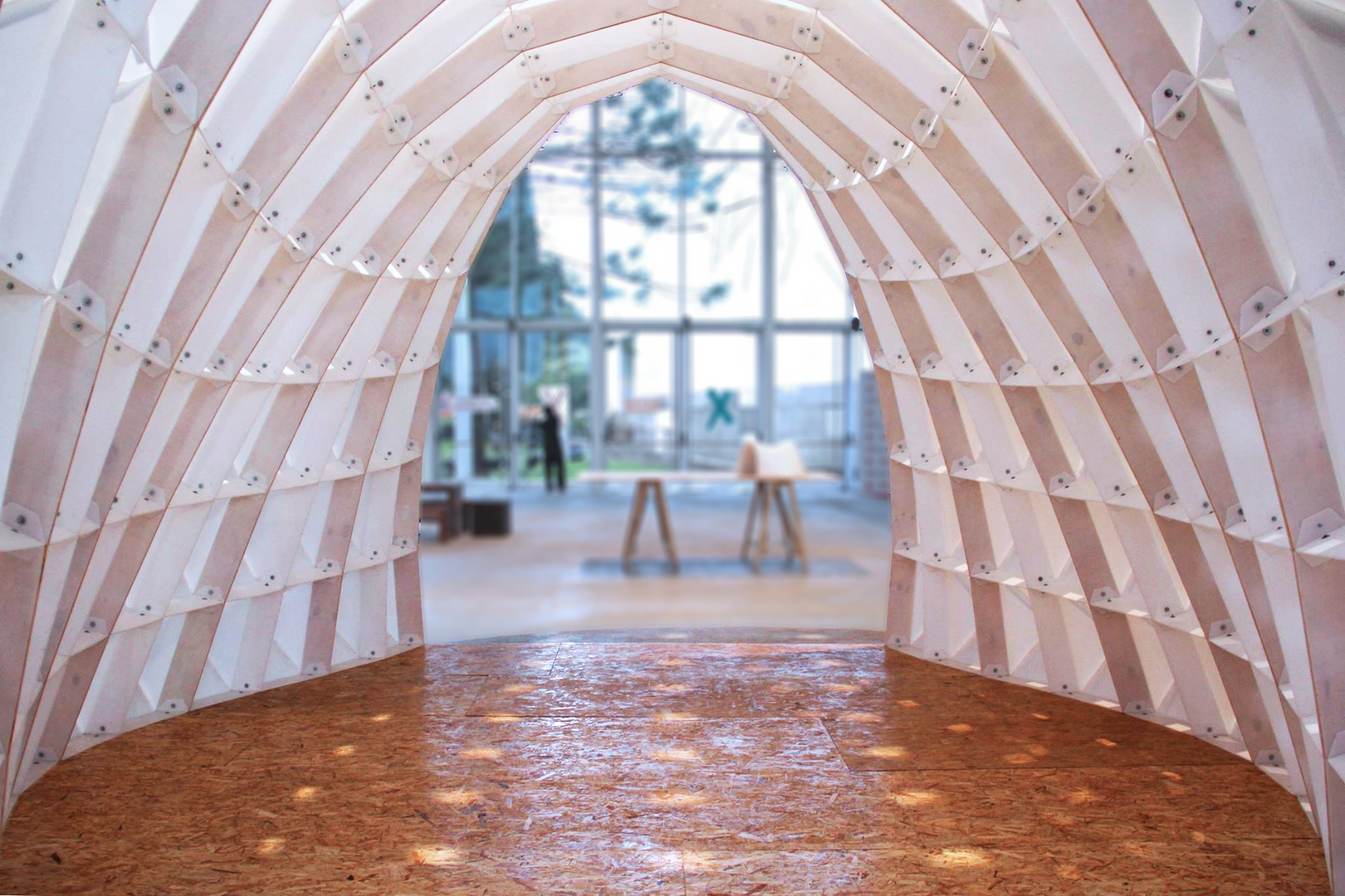

Furetsu is a digital designed and fabricated pavilion, which explores the architectonical properties of a cheap and light material such as the corrugated polyethylene. Its doubly curved “skin” is discretized in 672 unique, laser cutted pieces, which grouped in four and joined through a male-female system generate 168 pyramid shape modules. The particular geometry of the interlocked components constitute a peculiar ribbed structure. Since the union between the modules is made with bolts, the pavilion can be easily assembled and disassembled. The general geometry was produced with a digital form-finding process, which allowed to come up against a structurally efficient morphology. Additional structural support is provided by a set of 6mm thick plywood ribs, which are interposed between the white modules at regular distance.
![](https://freight.cargo.site/t/original/i/6990c1082eaffa1f711515f2b5f9710dd3a4300ac8bb660607fbabdc0f06e677/12.jpg)
![](https://freight.cargo.site/t/original/i/e545822fef20b3961cdf40bf4481f6c756fe0424f035a5656174fe5c091c6aee/3.jpg)
![](https://freight.cargo.site/t/original/i/bf6d6b65a152b64b45c44790da192989f446a1cb445e217ffb1024d5aac2d177/5.jpg)
![](https://freight.cargo.site/t/original/i/643a7bdd34c98c0f9be2a8d0bb5bab12b22d8889a4b46896caca923a975bde1b/4.jpg)
![](https://freight.cargo.site/t/original/i/2312850cc066e5a42184545040e69c2d0f4317565a53d457d717cc73d4c2dac0/7.jpg)
![](https://freight.cargo.site/t/original/i/7220907ff51a33379de9614e13b7e7d780c5fe7dc9e1ece8ab08b4ef5d31edf2/6.jpg)
![](https://freight.cargo.site/t/original/i/fb54c7d7c5451934328a547af5b42b0c593ae8c061ee394dc48e27823a670c0d/9.jpg)
![](https://freight.cargo.site/t/original/i/8655d6911a6c46c9cc5d2a33a874ca3a9d2f115cb496b5a5b42406ce0f15bc7d/2.jpg)
![](https://freight.cargo.site/t/original/i/14661daea5409d192dc9332085b55d6b7ad1dcba5adff74cf32316093373d176/3.jpg)
![](https://freight.cargo.site/t/original/i/a03ba9e1a6fccf8c05368d4485566c467771e513f2761716ef5105270131ce54/4.gif)
![](https://freight.cargo.site/t/original/i/ce6e6c04dc878301b0386a16460a07c5b9d3eaab5dc49cf5483e90b0a8f731e7/6.jpg)
![](https://freight.cargo.site/t/original/i/b3ac129a6d92d431ab8b5fc0316f3622373705c976677d037c75b0c38fd2eff3/2.jpg)
![](https://freight.cargo.site/t/original/i/acb3c70c152c77e0922b7f46e281ecafa24980cc90979f827f92264ae0b13ccf/1a.png)
Client: Tedx Buenos Aires
Design and development: Francesco Milano, Karen Antorveza
Construction Team: Gabriel Fortunato Chalabe, Guillaume Jami, Camila Narbaitz Sarsur, Nicolas Vischi
Photography: Ramiro Iturrioz
Supported by ︎︎︎CheLa
